AO-1000

Original Country :
Minium Quantity :
Style Number :
Parameter :

Features

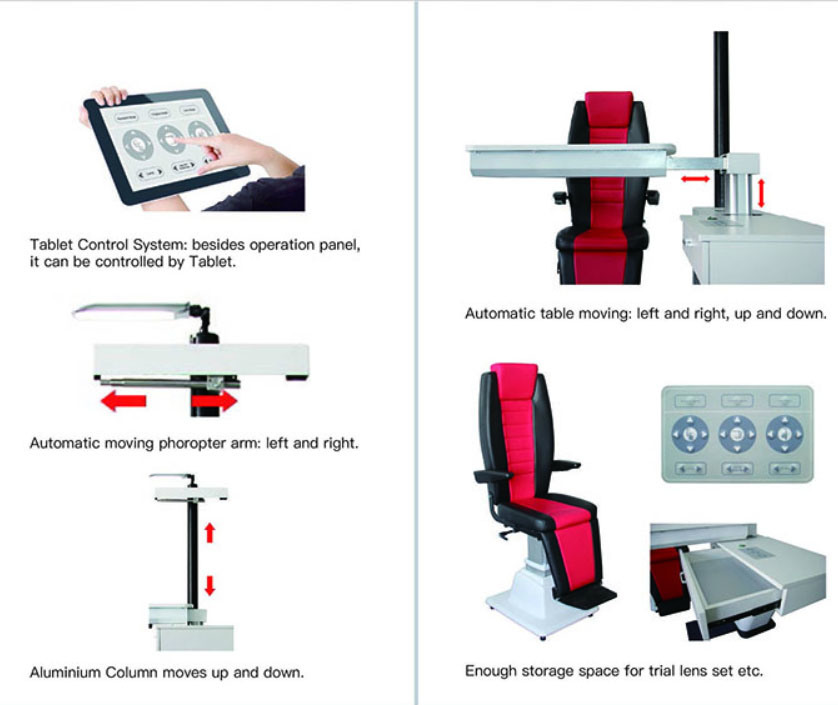

1).Toptable move up and down by motor
  Toptable move left and right by motor
2).Phoropter move left and right by motor
3).Phoropter pole move up and down by motor
4).Chair move up and down by motor
  Chair backrest adjust by motor
  Chair move ahead and back by motor
5).There is the control panel on the unit to control above movement.

Technical Data.

Unit size:                              1200mm × 1300mm × 1800mm
Table size:                            850mm × 450mm
Small table size:                    620mm × 400mm
Drawer size:                          520mm × 350mm
Control mode:                       film button /
                                          phone remote control /
                                          flat panel remote control
Configuration equipment:        computer refractometer /
                                          electric cattle eye /
                                          slit lamp /
                                          focus meter
Table rotation angle: 90 °
Countertop left and right movement distance: 400mm
Countertop up and down distance: 150mm
Column (cattle eye arm) left and right moving distance: 400mm
Column (cattle eye arm) up and down distance: 120mm
Chair left and right movement distance: 150mm
Chair up and down distance: 150mm
Chair back angle:                   140 °
Chair movement mode:           pulley move (optional)
Chair height:                         700mm
Chair loading ability:               250kg
Lamp:                                  LED (24V, 7W)
Electric Voltage:                    AC220V / 110V 50 / 60HZ
Weight:                                200kg
Packing:                               wooden box
Packing size:                         1000mm × 1200mm × 1300mm
